Ceramic Valve Components for Fluid Handling Applications
Valves play a key role in controlling, regulating and shutting off fluid flows in industrial processes. In many applications, valve components are exposed to aggressive media, high pressures, abrasion and extreme temperatures that can significantly limit the performance and service life of conventional materials.
Ceramic valve components last 3–5× longerin abrasive and corrosive media and up to 10x in erosive media compared to metallic alternatives
CeramTec manufactures customized ceramic valve parts – from valve balls to sealing discs – precisely tailored to each application
Proven across chemical and petrochemical, oil & gas, energy, mining, and pharmaceutical industries
With extensive experience in advanced ceramics and fluid handling applications, CeramTec supports customers from the early design phase to series production. Our application‑driven approach combines material expertise, component design and manufacturing know‑how to deliver valve solutions optimized for function, durability and efficiency.
Whether used in standard valve designs or tailored to highly specialized process requirements, CeramTec ceramic valve components play a key role in ensuring reliable, long-term valve operation while maximizing performance and minimizing maintenance.
Ceramic Valve Components for Demanding Processes
Advanced ceramics offer unique advantages for critical valve components where wear, corrosion or contamination must be avoided. CeramTec develops and manufactures customized ceramic valve components, precisely tailored to the specific requirements of each valve design and application.

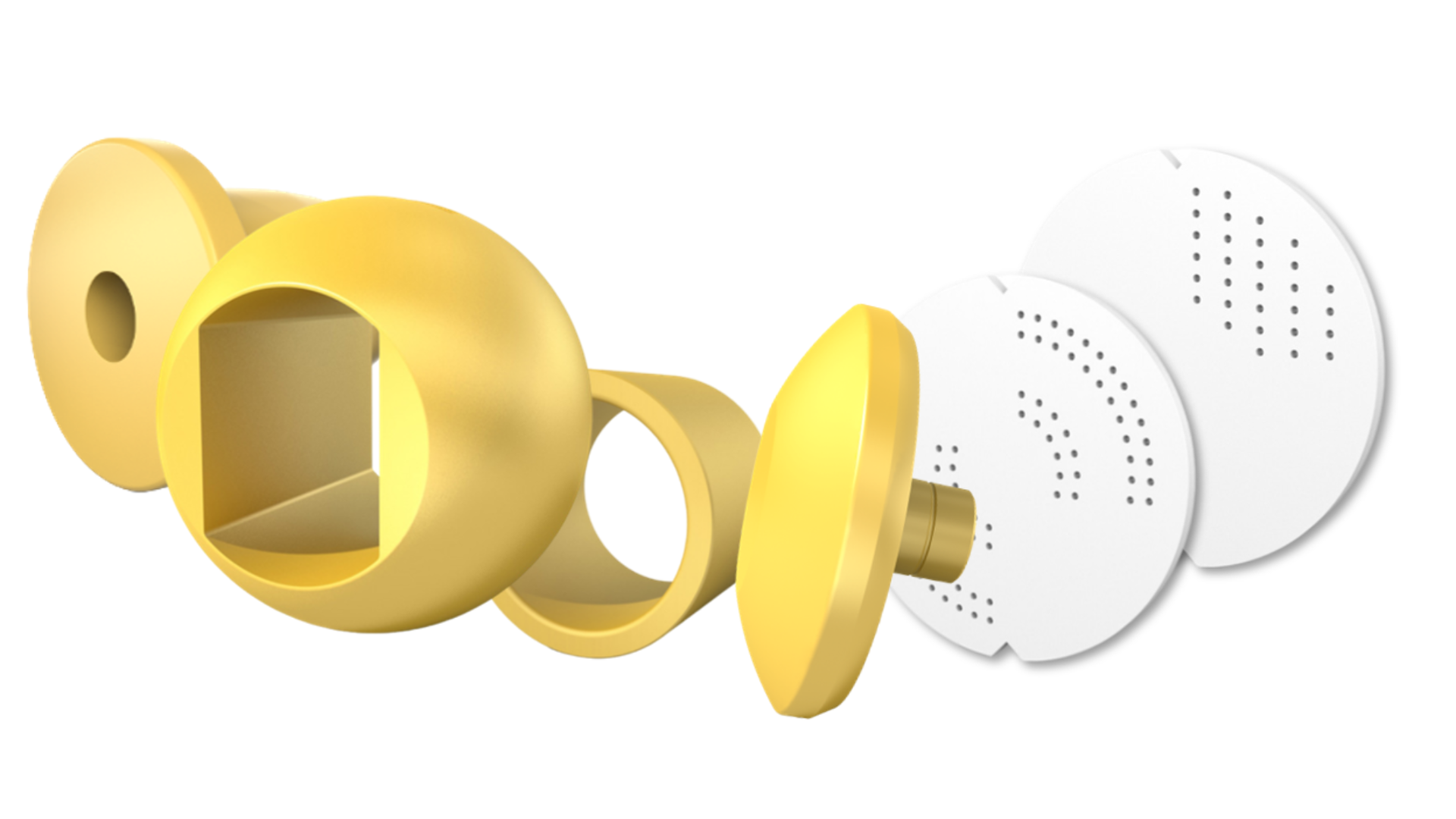

Typical ceramic valve components include:
| Component | Function | Key Material Benefit |
|---|---|---|
| Valve balls | Flow shut-off and control | Extreme wear and corrosion resistance |
| Seats and sealing elements | Tight shut-off, leakage prevention | High surface finish, dimensional stability |
| Discs, plugs and flaps | Throttling and regulation | Chemical inertness, smooth surfaces |
| Sleeves, casings and guide components | Structural support, media guidance | Thermal stability, low friction |
Key Benefits of Ceramic Valve Components
Ceramic materials – particularly alumina (Al₂O₃), zirconia (ZrO₂) and silicon carbide (SiC) – deliver measurable performance advantages:
- Exceptional wear and erosion resistance: Up to 10× harder than hardened steel
- High chemical and corrosion resistance: Inert to acids, alkalis and organic solvents
- Stable performance at elevated temperatures: Functional up to 1,000°C+
- Smooth surfaces for precise flow control: Surface roughness Ra < 0.1 µm achievable
- Reduced leakage and extended service life: Tight tolerances maintained over years of operation
- Lower maintenance effort and lifecycle costs: Fewer replacements, less unplanned downtime
CeramTec ceramic valve components are proven across a wide range of demanding industries:
- Chemical and Petrochemical Industry – Corrosion-resistant valves for aggressive media handling
- Oil & Gas – Erosion-resistant components for high-pressure slurry and sand-containing flows
- Mining and Minerals Processing – Wear-resistant valve balls and seats in abrasive slurries
- Power Generation – High-temperature valve components for steam and flue gas applications
- Water and Wastewater Treatment – Long-life sealing discs in abrasive sand/grit environments
- Pharmaceutical and Food & Beverage – FDA-compatible, non-contaminating ceramic valve parts
