Customized Solutions for Demanding Semiconductor Applications

Advanced Ceramics for the Semiconductor Industry

Over 120 years of experience in technical ceramics and many years of experience in the semi-conductor industry, combined with comprehensive material and process knowhow and outstanding product characteristics make us one of the key go-to solution partners, when it comes to ceramic components utilized in the semiconductor industry. Discover the advantages offered by our advanced ceramics portfolio and benefit from our solution expertise for a variety of handling and manufacturing processes in the semiconductor industry.

We manufacture our ceramic components and parts according to your individual application requirements, so you can design and maintain your processes flexibly and reliably. We have transitioned from a manufacturer of high quality ceramic components to a strong development partner who transforms your individual requirements into state of the art semiconductor products.

Powerful Ceramic Materials

Indispensable for the Semiconductor Business

Whether in wafer processing, semiconductor manufacturing or handling - our components made of high-performance ceramics enable long-lasting performance and reliability.

CeramTec offers the right ceramic material for almost every requirement:

  • Al2O3 – high purity and rigidity
  • AlN – high thermal conductivity and electrical insulation
  • SiSiC – low thermal expansion and density
  • Si3N4 – high fracture toughness and low thermal expansion

Based on individual requirements, we can recommend the optimum material selection for the customer application. We are continuously improving key steps in our manufacturing process while simultaneously expanding our production capabilities.

Advanced Ceramic Solutions for the Semiconductor Industry
Highlight Section

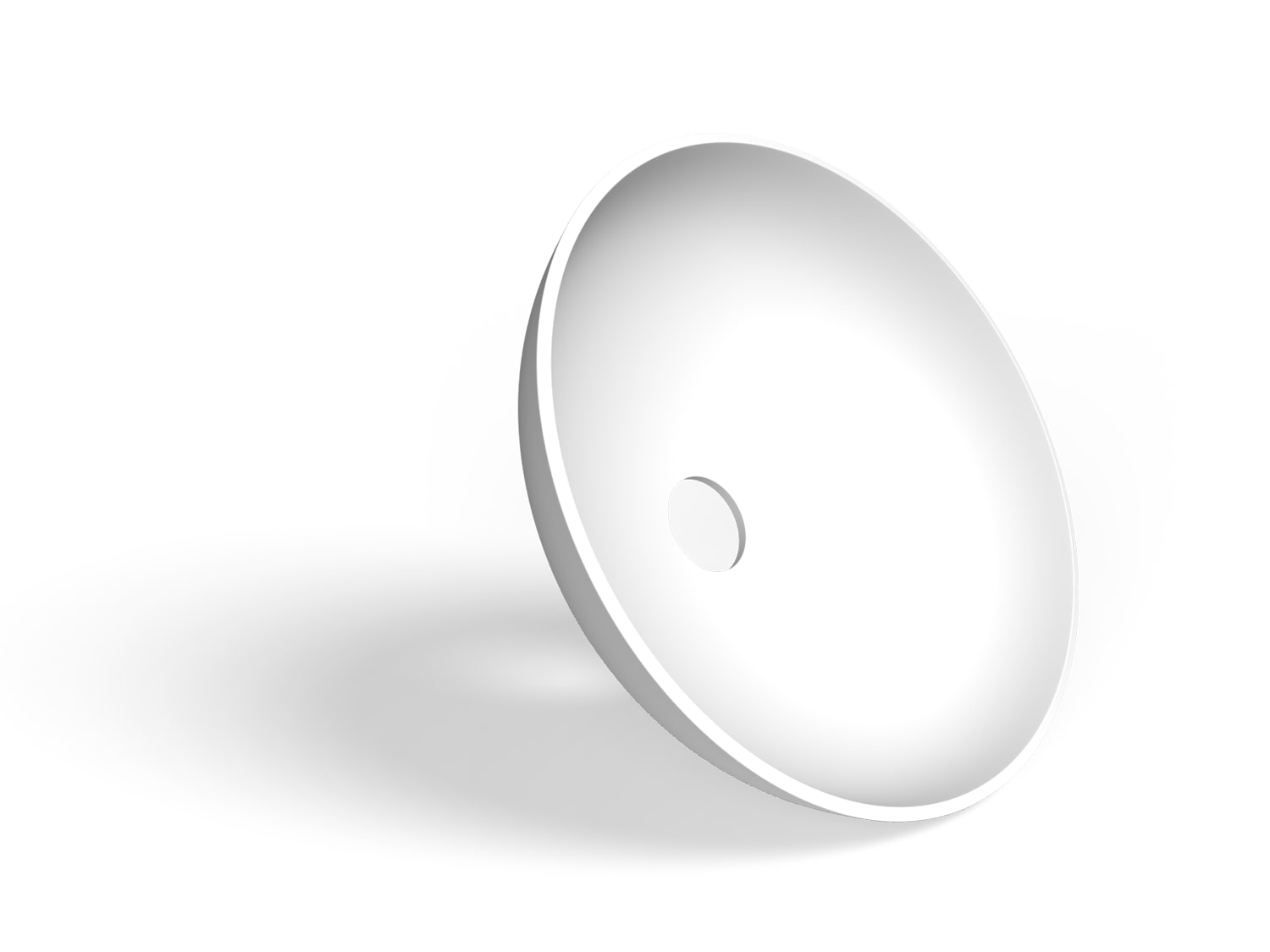

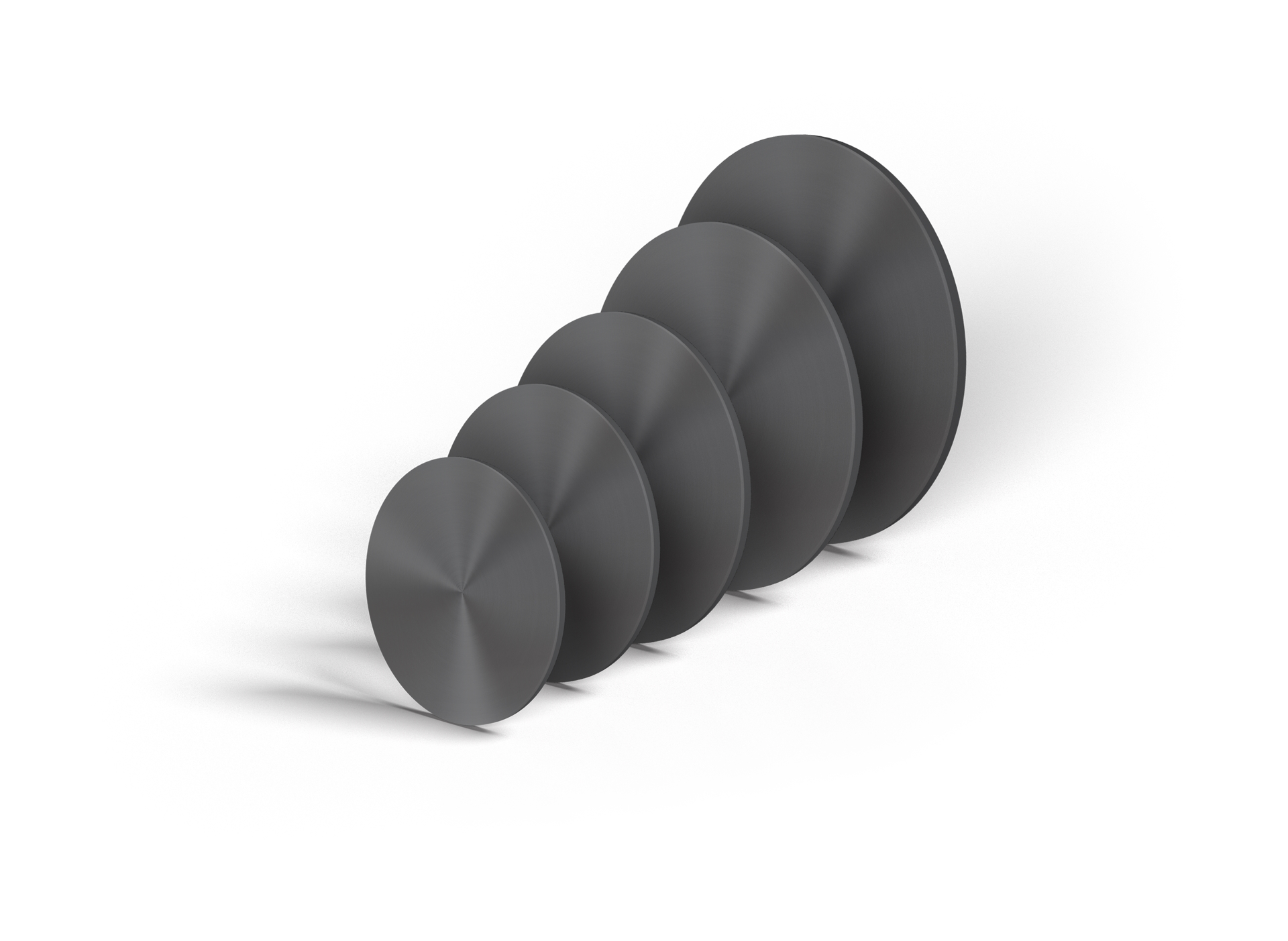

Exemplary Products for the Semiconductor Industry

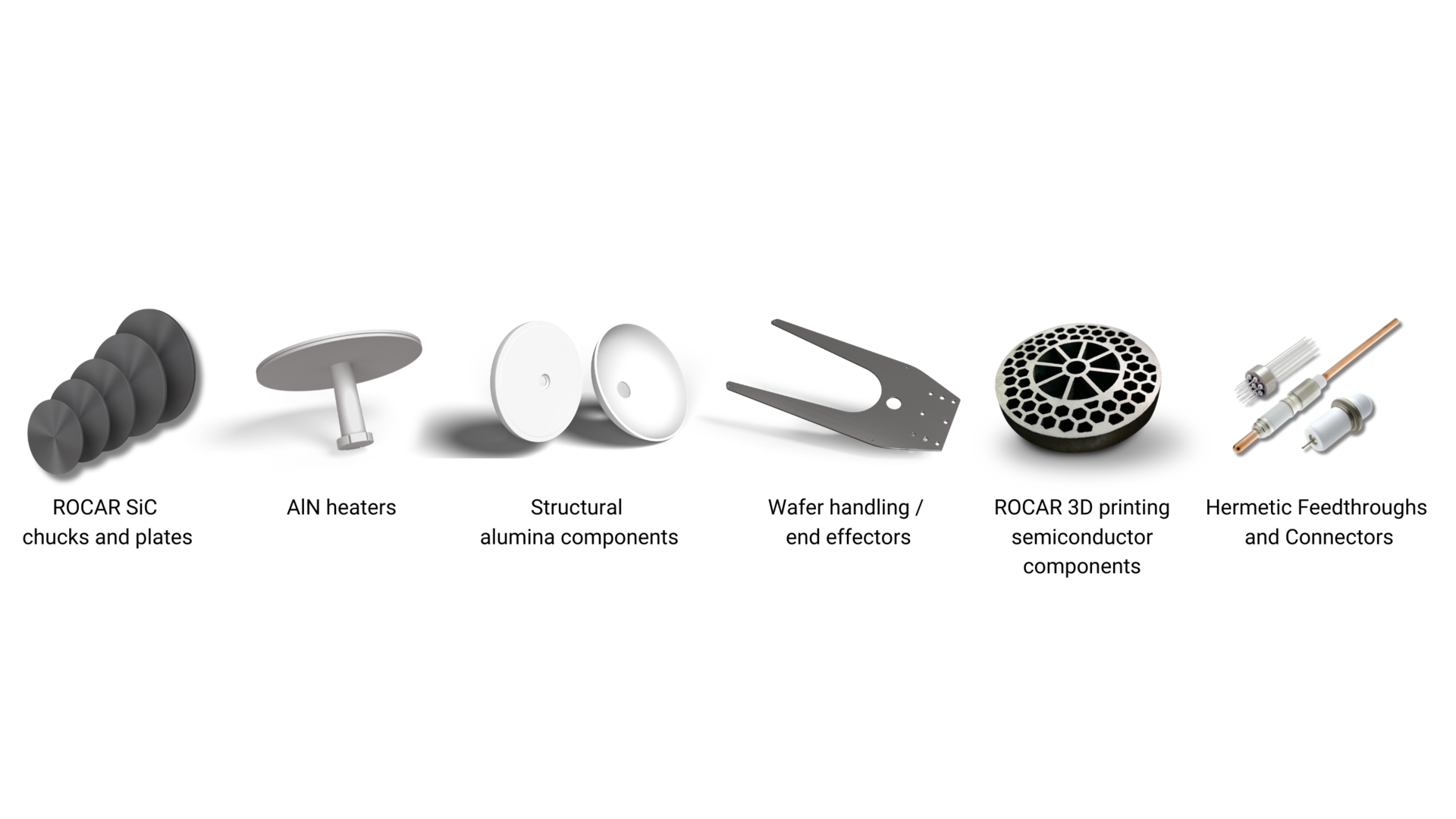

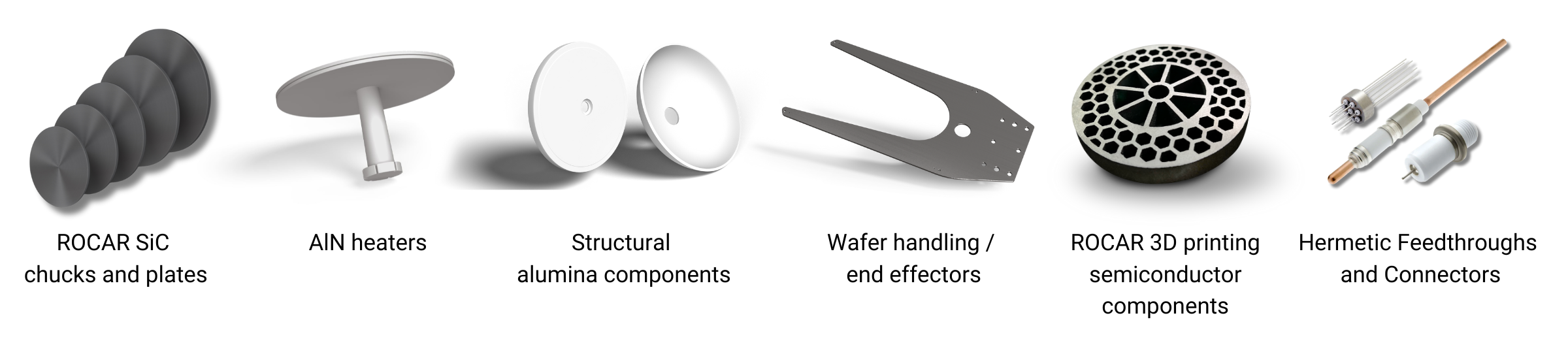

Several ceramic products for the semiconductor industry

Please click on the image to enlarge

Experience Enhanced Production Capabilities

Improved Key Process Steps to meet High Industry Demands

KEY PROCESS STEPSTECHNICAL PARAMETERSREACHABLE VALUES/REQUIREMENTS
Hard machining - millingFlatness, parallelism, RaFlatness < 1 μm
Ra ≥ 0,05 μm"
GrindingFlatness5 μm < Ø 200 mm / 10 μm > Ø 200 mm
Parallelism5 μm < Ø 200 mm / 10 μm > Ø 200 mm
RoughnessRa from 0,15 μm to 0,6 μm
ErodingSymmetrical positioningup to 0,05 mm (holes/grooves positioning)
Lapping & polishingFlatness, parallelism, RoughnessRa from 0,06 μm to 0,35 μm
Flatness < 2 μm
Parallelism < 2 μm
StructuringRoughnessRoughness < 3,2 μm
Size < 150 μm
Special measurementLocal slope/local flatnessObjective resolution 50 nm - 25 μrad
Cleaning & packagingCleanlinessISO 5 / Clean room 100 / package in clean room
(based on customer request)

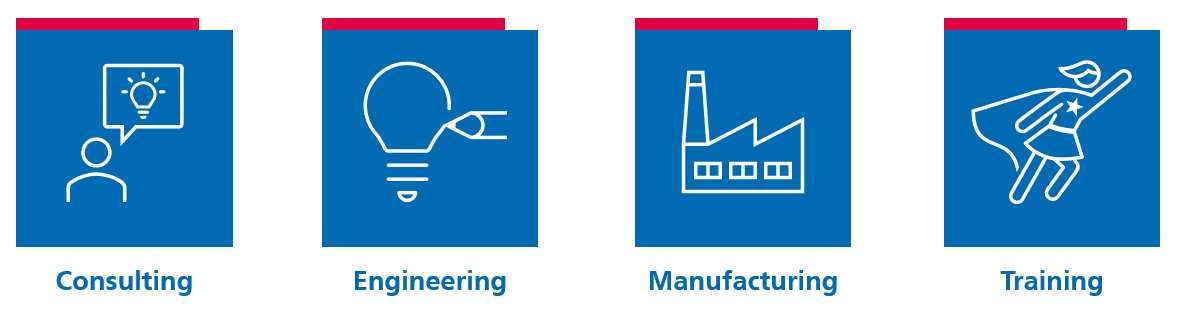

From the Initial Idea to the Final Product

Customized Advanced Ceramic Solutions

  • Basic Suitability of Ceramics
  • Selection of Materials
  • Tailored Design & Construction
  • Prototypes
  • Risk Management
  • Simulating and Modeling
  • Specification
  • Quality Assurance
  • Series Production
  • Change Management
  • Audits
  • Product Training
  • Application Training
  • Further Development and Know-How Transfer
Consulting
  • Basic Suitability of Ceramics
  • Selection of Materials
  • Tailored Design & Construction
Consulting
Engineering
  • Prototypes
  • Risk Management
  • Simulating and Modeling
  • Specification
Engineering
Manufacturing
  • Quality Assurance
  • Series Production
  • Change Management
  • Audits
Manufacturing
Training
  • Product Training
  • Application Training
  • Further Development and Know-How Transfer
Training
We look forward to hearing from you

Get in touch with us
