Advanced Piezoceramics. Proven Performance.
High-Performance Materials for Piezo Applications

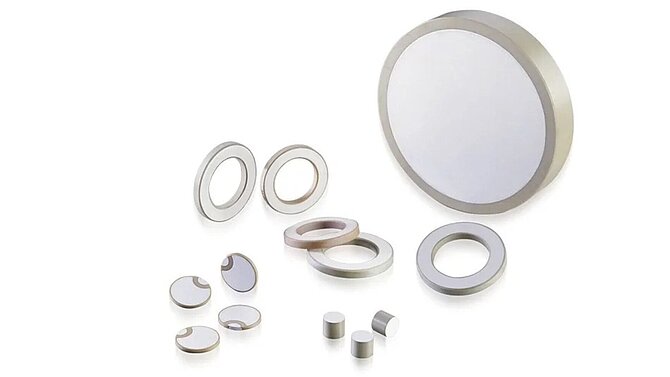

Engineered for demanding piezoelectric applications, CeramTec’s SONOX® and PZT materials combine outstanding performance with exceptional reliability. Designed to withstand high mechanical and electrical loads, they enable piezoceramic components to deliver consistent performance, even under challenging operating conditions. With a broad range of material properties, CeramTec offers tailored material solutions for high-performance sensors, actuators, and transducers.
Selecting the Right Piezoceramic Material
Key Performance Properties for Piezo Applications

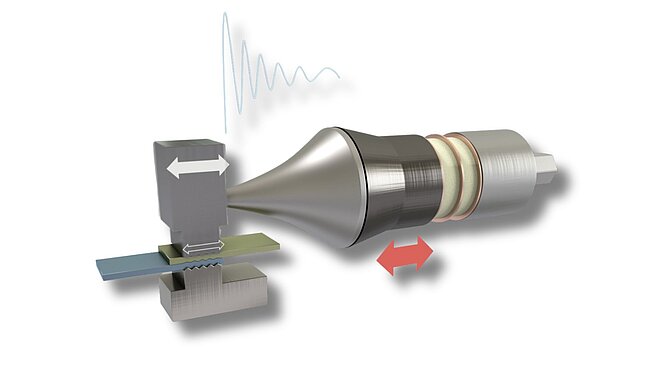

| Power Transducers | Sensor Applications | Actuator Applications | |
|---|---|---|---|
| Relative permittivity ε33 T/ε0 | 1,000 – 1,395 | 1,500 – 3,400 | 1,800 – 3,800 |
| Loss factor tan σ | 1.6x10⁻³ – 3.0x10⁻³ | 12x10⁻³ – 20x10⁻³ | 15x10⁻³ – 16x10⁻³ |
| Coupling factor kP | 0.54 – 0.58 | 0.59 – 0.62 | 0.65 |
| Charge constant d33 10⁻¹² C/N | 240 – 315 | 390 – 620 | 475 – 680 |
| Voltage constant g33 10⁻³ Vm/N | 500 – 1,200 | 22.7 – 33.1 | 20.2 – 28.5 |
| Quality factor Qm | 500 – 1,200 | 60 – 90 | 75 – 80 |

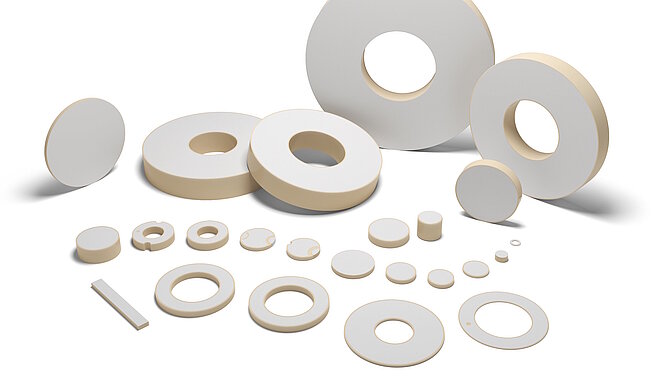

- Moving Towards a Greener Future for Medical Sensors and Transducers - Amir R. Mirza, Ph.D., former Sales Director of CeramTec UK Ltd. introduces the recent developments of lead-free piezoceramic materials for medical sensors and devices. Download
- Reducing Time to Market for Critical Medical Ultrasonic Sensors & Transducers - Amir R. Mirza, Ph.D., former Sales Director of CeramTec UK Ltd. describes the latest possibilities in medical technology made possible by modern ultrasonic technology. Download
- CeramSense®: Extending the Environmental Lifetime of Ultrasonic Water Meters - Liam Dillon, former Product Manager Piezo, Sensors & Transducers, introduces the critical role of environmental stability of transducers in water metering applications. Download
