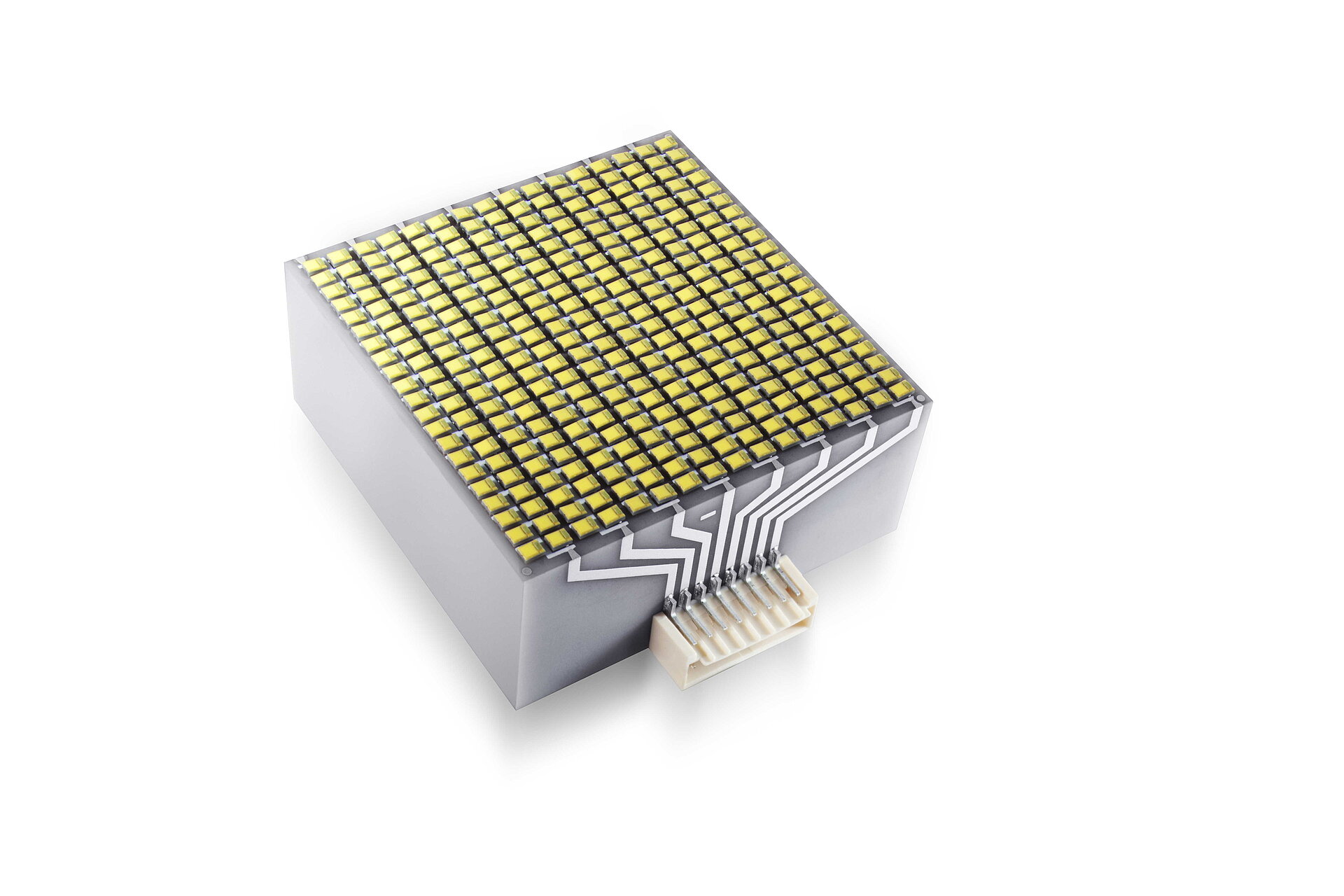

CeramCool® Box Cooler

Modular Liquid Cooling across the entire Heat-Sink Surface

Modular Liquid Cooling across the entire Heat-Sink Surface

CeramCool® Box Cooler is constructed from several layers of aluminium nitride ceramic. The inner structure is designed in a spiral shape to enable the most homogeneous cooling possible up to the edge.

CeramCool® Box Cooler can also be metallised on the side, so it is also possible to lead the metallisation around the corner. This and the connections on the back of the heat sink make it easy to produce plug-in modules. It can be scaled almost arbitrarily in x- and y-direction to form large fields.

CeramCool® Box Cooler
  • Multilayer construction
  • Pinpoint internal structure design
  • Cooling to the edges
  • Can be metalized on multiple sides, enabling three-dimensional arrangement of components
  • Can be scaled in any direction
Modular Liquid Cooling across the entire Heat-Sink Surface
Technical Data for CeramCool® Box Cooler

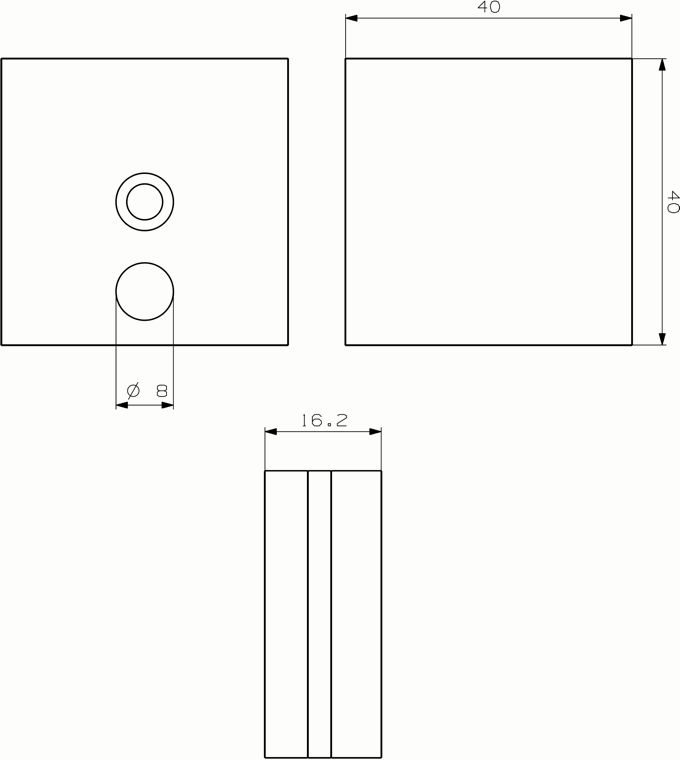

  • Dimensions: 40 x 40 x 16 mm
  • Cooling connections: bottom
  • Rth: 0.0066 K/W
  • R'th: 0.105 Kcm2/W @ 25 l/min

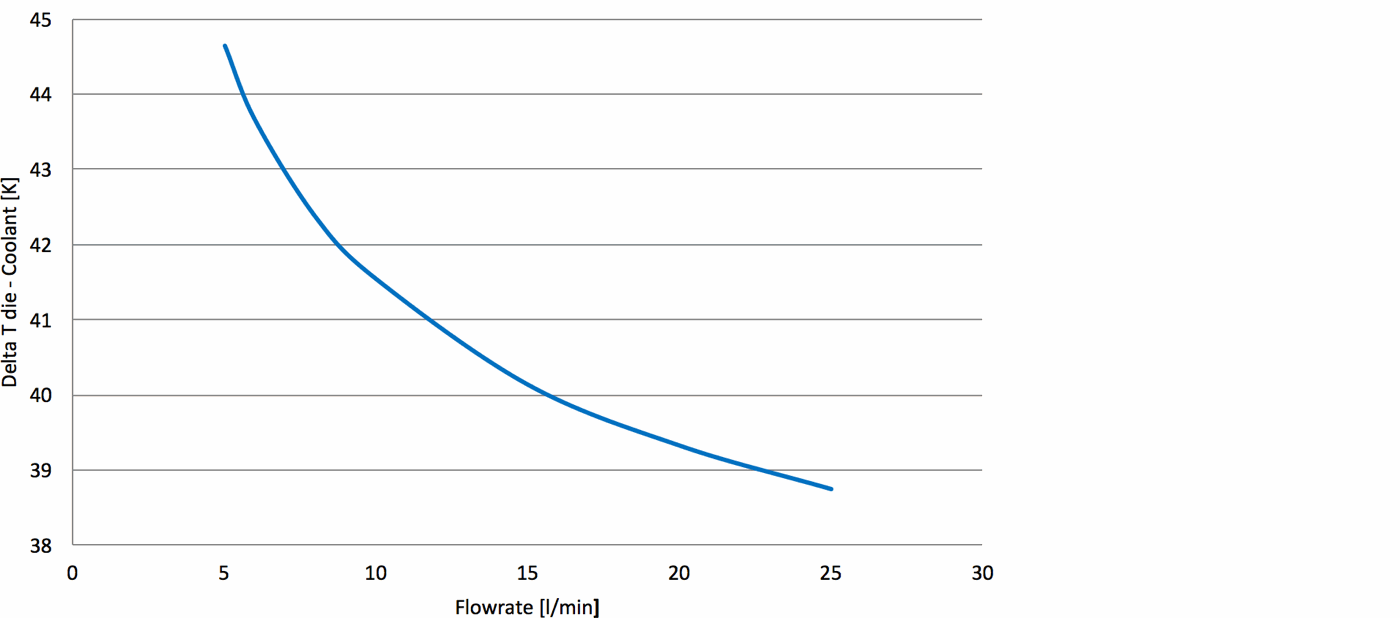

Characteristic Curve Temperature Flow Rate

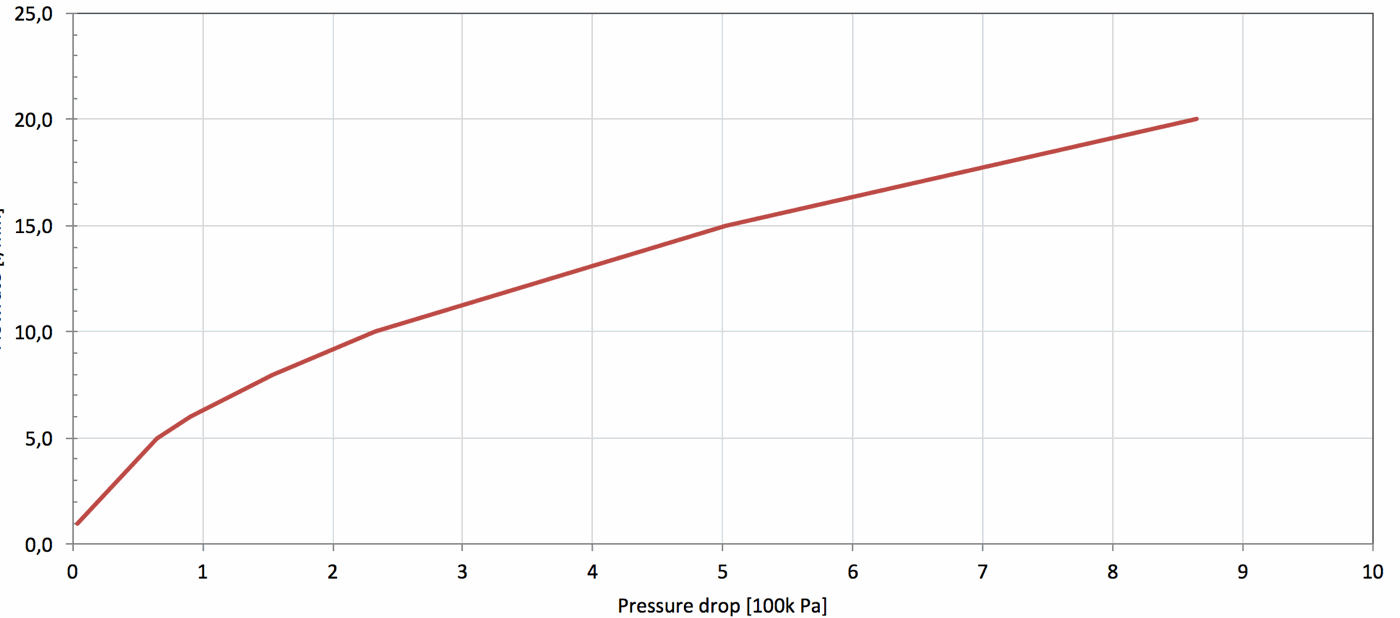

Characteristic curve temperature flow rate pressure drop
